Description

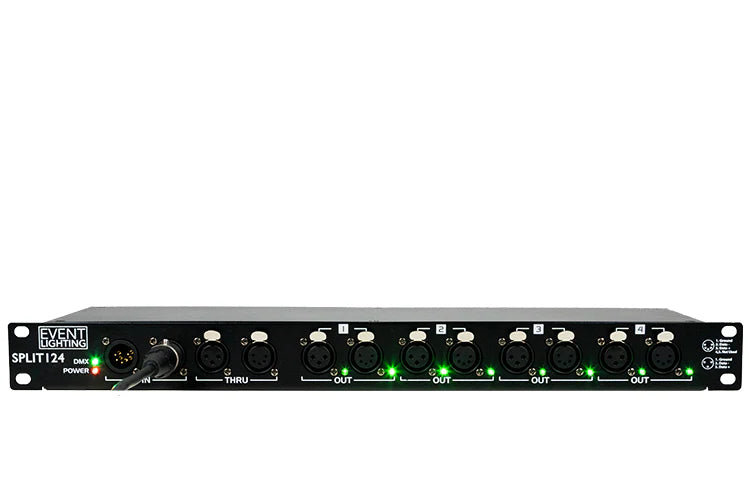

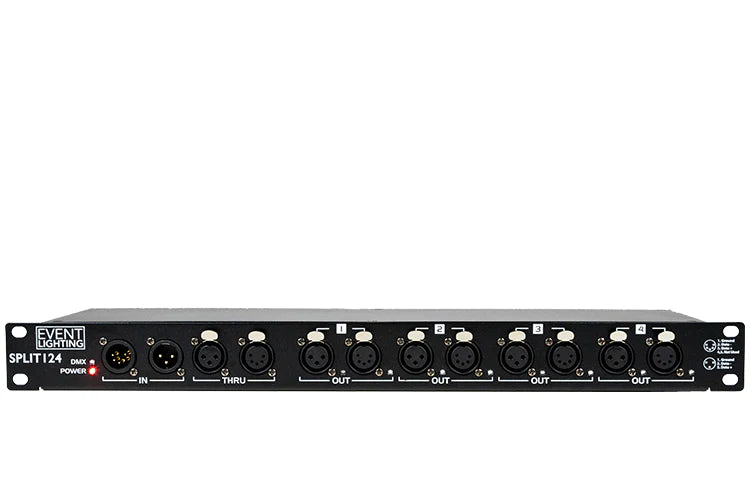

The SPLIT124 is a rack or truss mountable DMX splitter designed to re transmit and distribute a DMX signal into 4 outputs and one throughput. Both 3 and 5 pin XLR connectors are included for maximum flexibility when connecting DMX controlled devices. The optically isolated circuitry protects your controller from electrical surges while maintaining the integrity of the signal.
- DMX512 Protocol
- 4x Optically Isolated Outputs
- Power: 100-240V AC, 50/60Hz
- Power Consumption: 5W

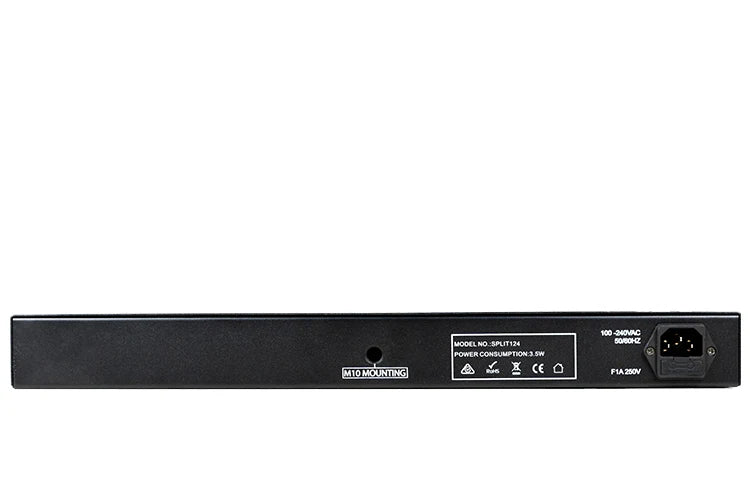

- Power Connections: IEC input
- Connections: 1 input, 4 outputs, 1 through, 3 and 5 pin XLR
- Dimensions: 483 x 131 x 45mm (1U)
- Weight: 2.6kg
Warranty: 3 years
